Some Test Equipment

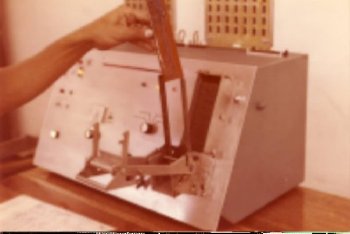

Board Compatator showing the Program Board which defines the inputs and output pins

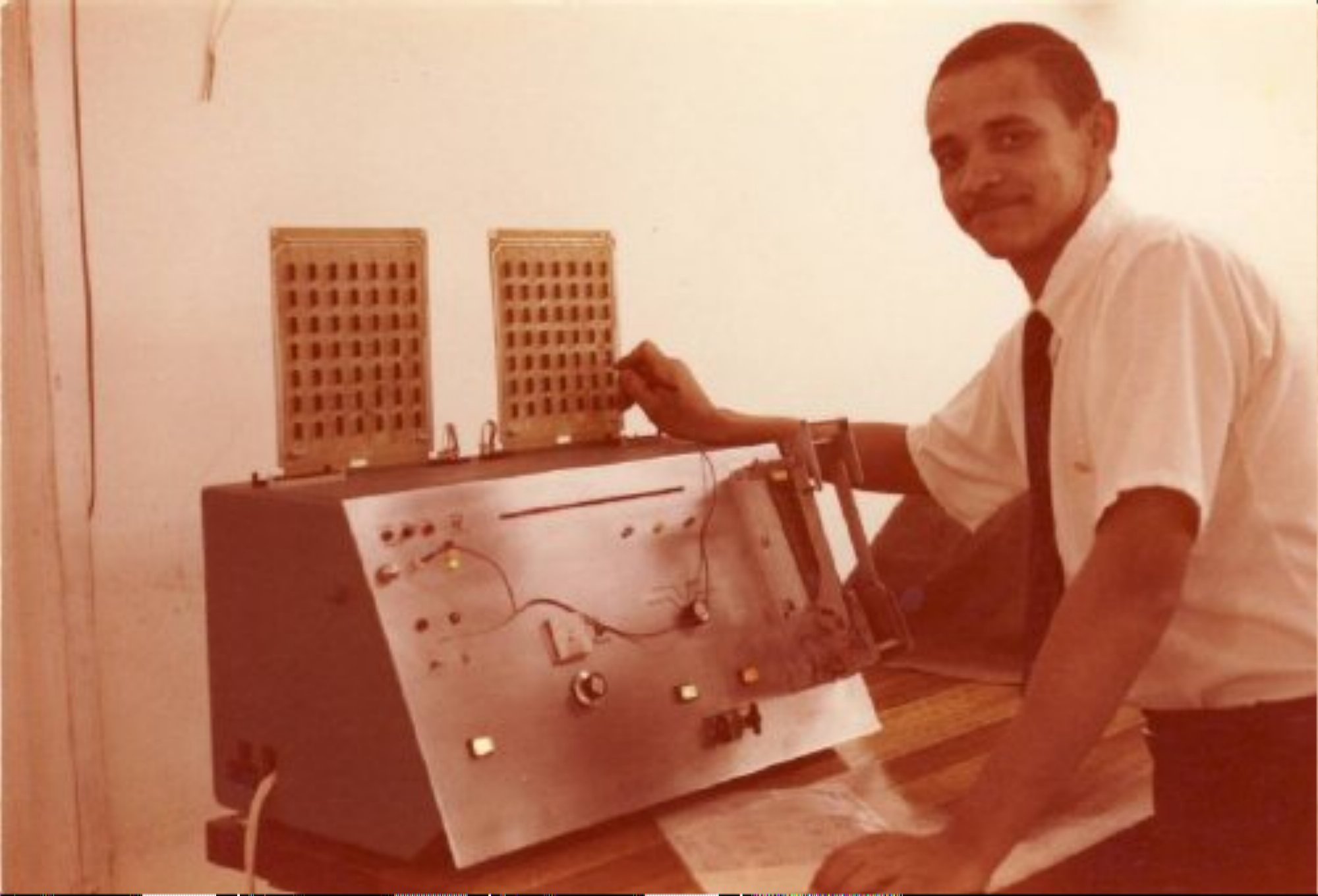

Board Comparator, which compares a good and bad board. Signals are sent to both boards on the input pins, and the comparator monitors the output pins. As soon as the outputs differ, the machine will halt, indicating which output pin failed. The operator now traces the fault using a logic probe and relavent schematic.

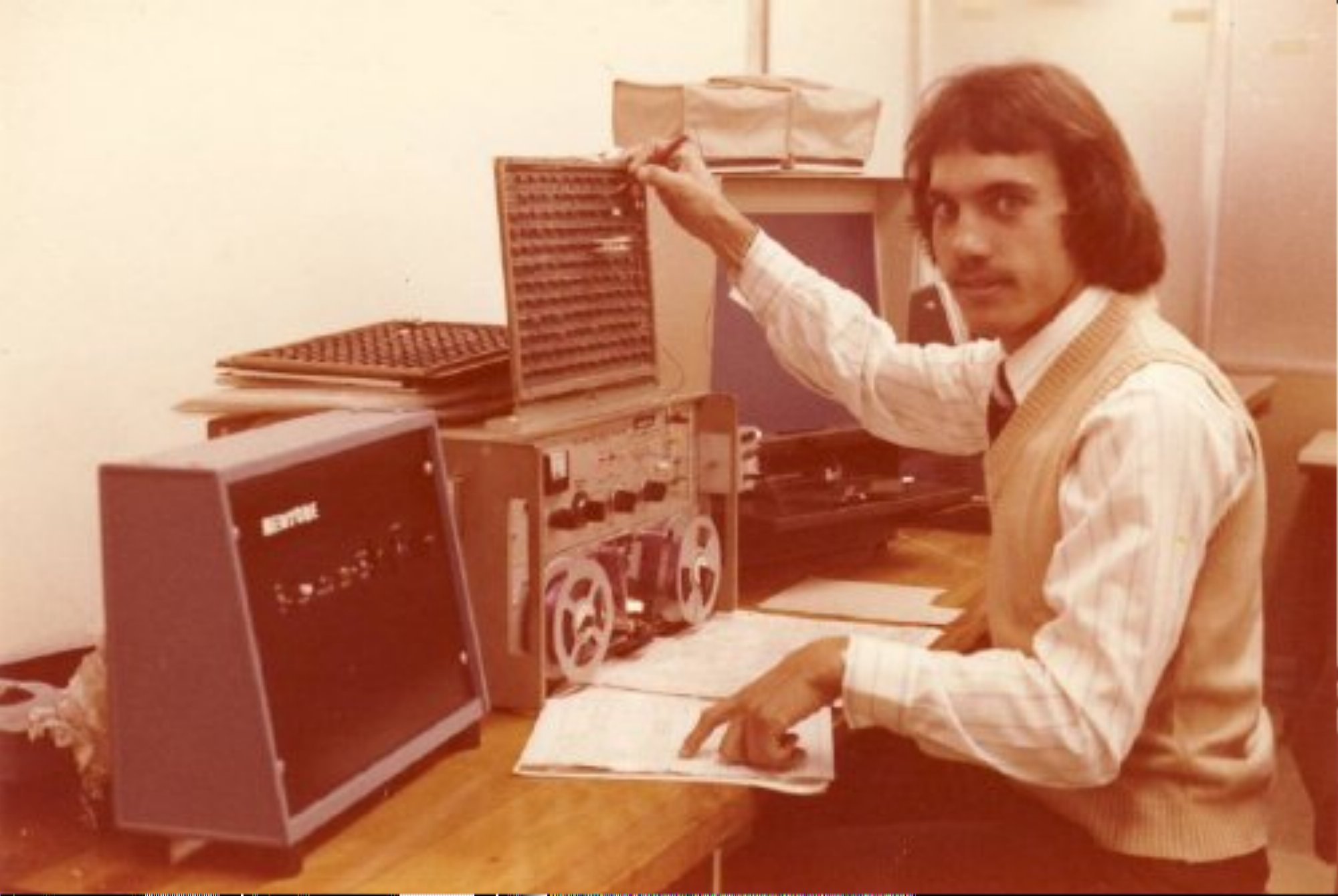

Tode Tester which uses a program on punched tape to test the board

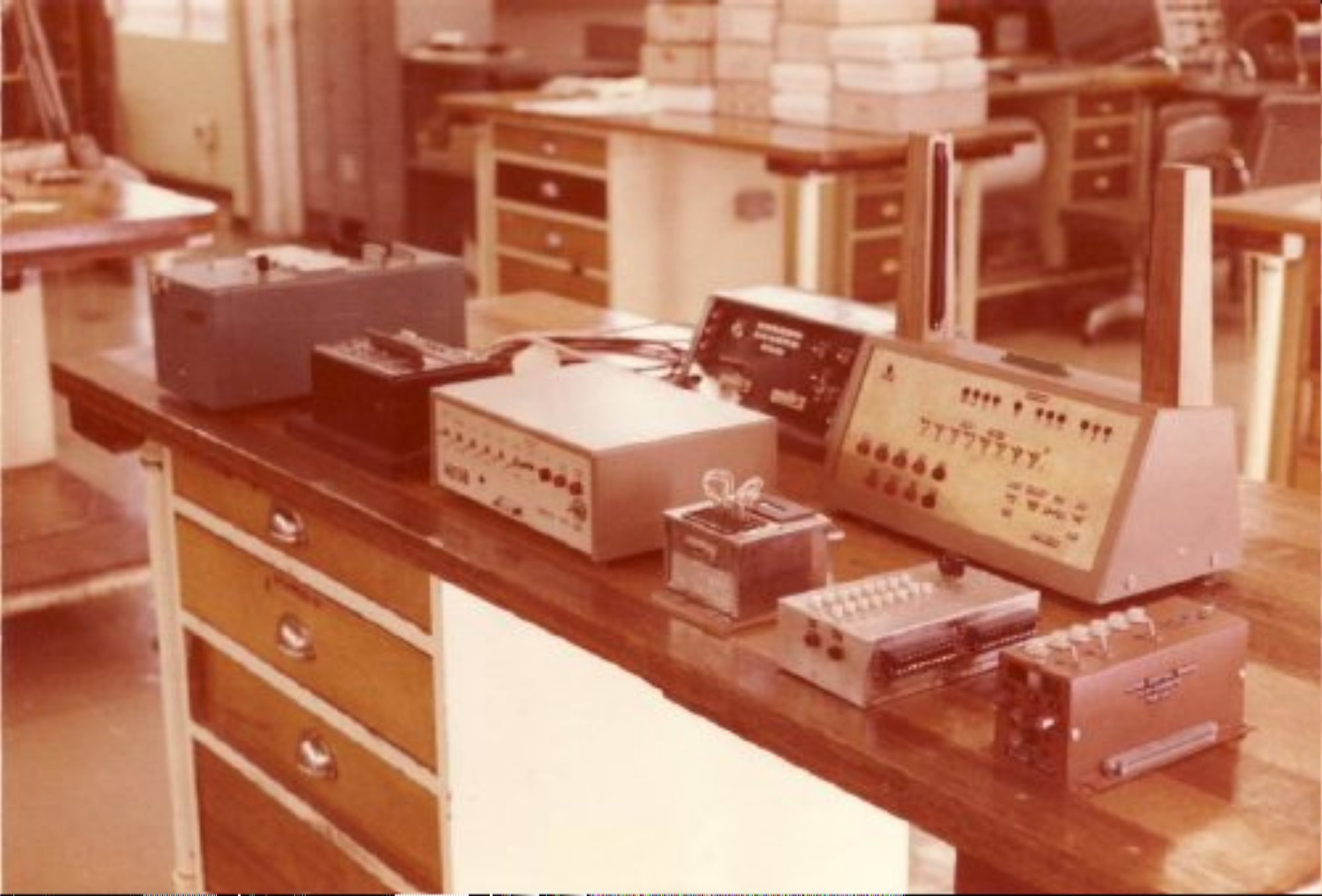

Assortment of test units to test specific boards

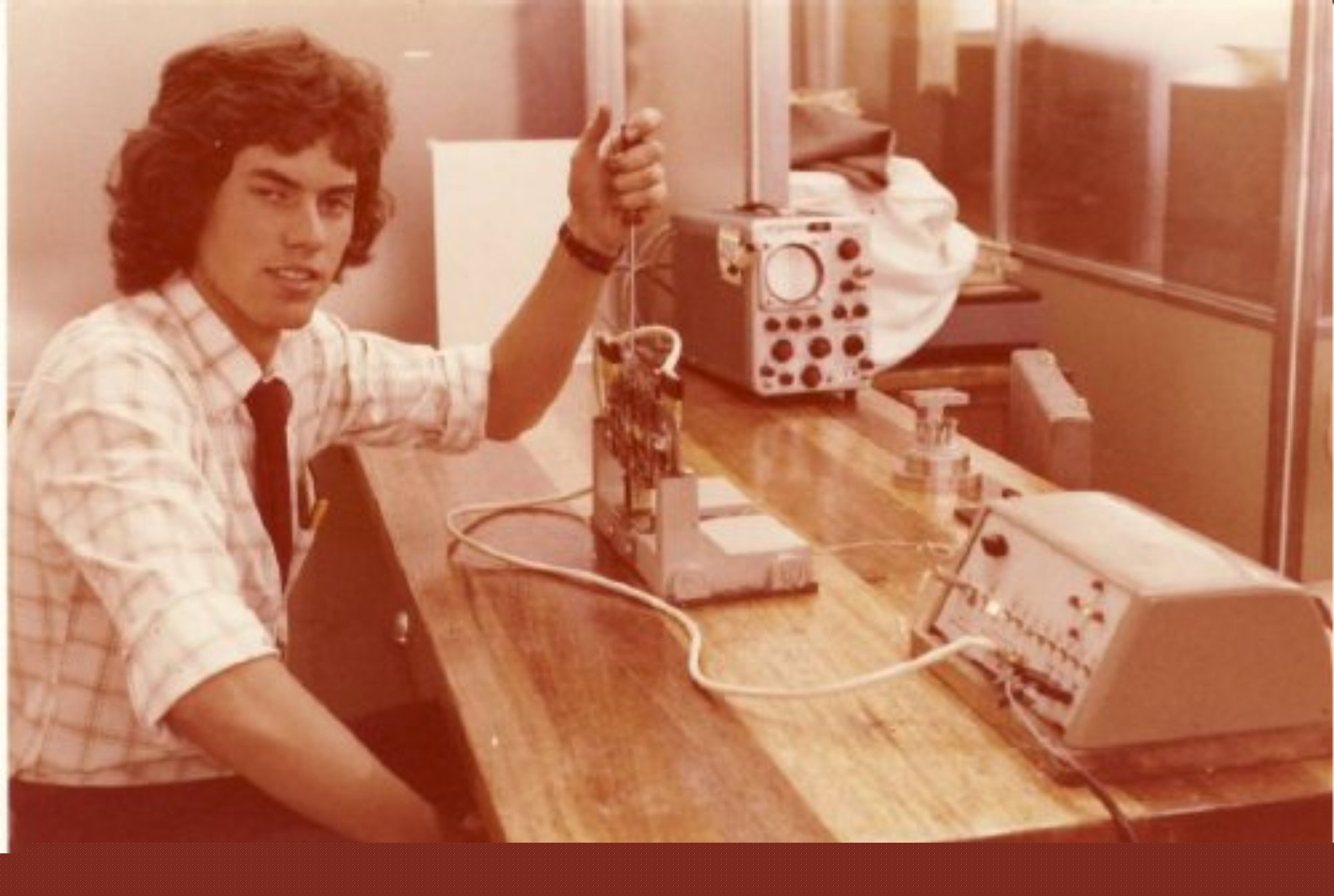

Printer Hammer Module Tester. Tests the Hammer Modules dynamically to set them to specification

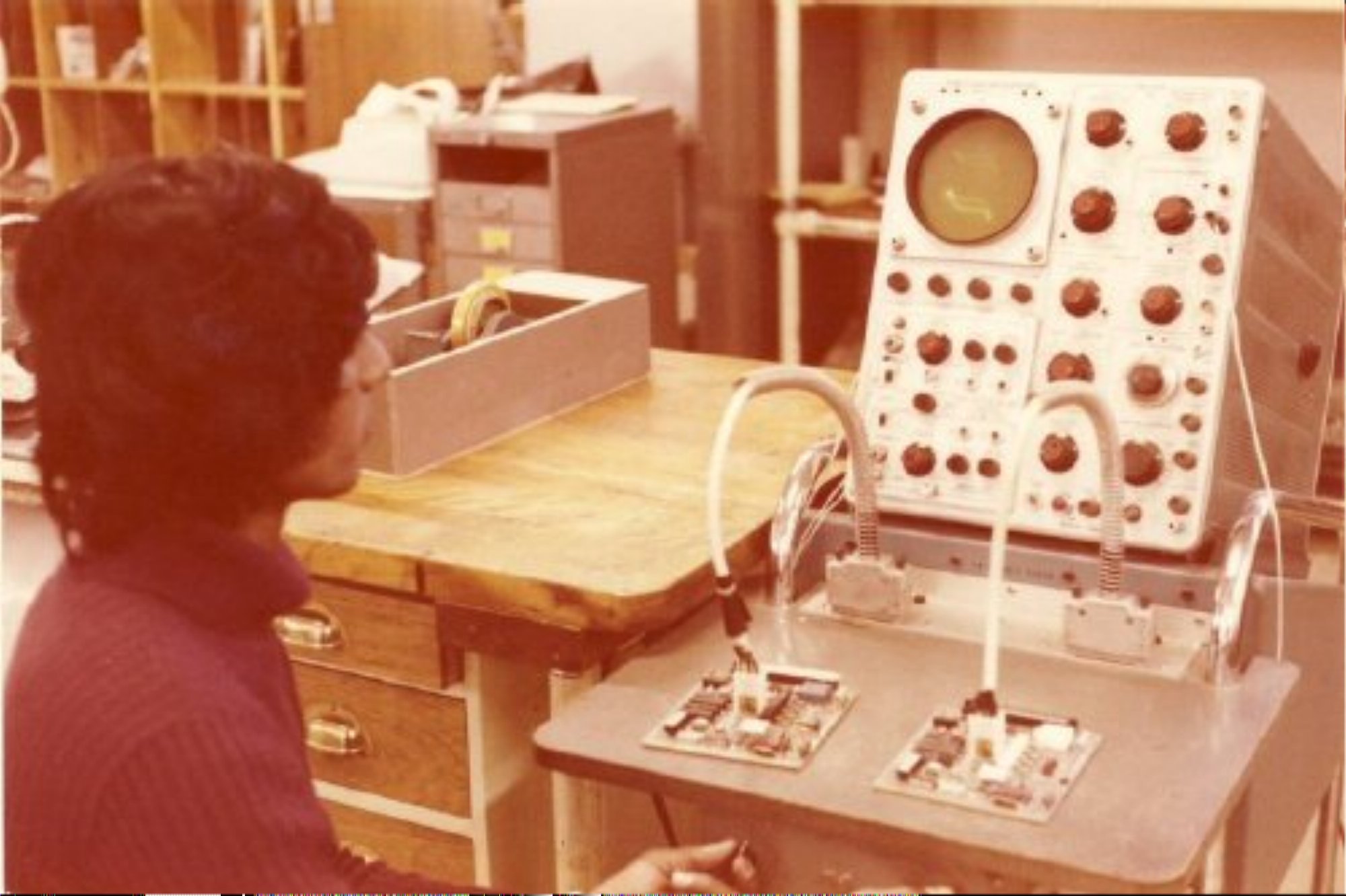

In Circuit Chip Comparator. Compares chips on a good and bad board using an Oscilloscope to display the Lissajous Pattern
